The 32nd annual International Munich Paper Symposium (IMPS) will meet again from March 19-21, 2024 in Munich, Germany. In line with this year’s theme: "Progress in paper and board production," the German manufacturer emtec Electronic will be on site to present technical solutions to optimize resource use and increase production efficiency. The 32nd annual IMPS will again bring together industry professionals for a three-day symposium to exchange ideas and showcase the latest technological innovations. Rising costs, environmental concerns, and raw material shortages are forcing companies to...
  • 360 Grad Bild (HTML Code): <a class="Magic360" data-options="columns: 73; rows: 1;"><img src="images/stories/produkte/ACA/360-webp/01.webp" /></a>
  • Untersuchung von:
    • Eigenschaft: paper
    • Eigenschaft: board
    • Eigenschaft: plastic film
  • Vorteile:
    • Vorteil: non- destructive measurement without combustion
    • Vorteil: quantitative determination of individual fillers
    • Vorteil: availability of the results within seconds (approx. 60 sec.)
    • Vorteil: high accuracy of measurements
    • Vorteil: easy handling (self-explanatory operation)
    • Vorteil: results independent of operator
    • Vorteil: easy portable (in a trolley)
    • Vorteil: savings in time and energy (compared to combustion)
    • Vorteil: optimal process control due to instant availability of measuring results
    • Vorteil: efficient calibration of online ash sensors (especially in case of frequent grade changes)
  • Produktbeschreibung:

    With the combustion method according to ISO 2144, DIN 54370, TAPPI T 413 and 211, which is traditionally applied in the paper industry, the total content and a few selected individual fillers can only be determined through an extremely time- and energy-consuming and in routine operation relatively inaccurate combustion of the samples at different temperatures (+/- 5%, operator dependent!). The combustion method is also disadvantageous due to its destructive measuring procedure.

    By the use of the emtec ACA Ash Content Analyzer with its new and innovative measuring principle the total ash content (fillers and pigments), but also the percentage content of the typical fillers in the paper industry can be determined within seconds without combustion of the samples, i.e., non-destructive.

    The quick measuring procedure leads to an almost instant availability of measuring results and therefore allows for an indeed immediate reaction to changes in the process:

    • Immense material savings can be achieved through the reduction of process fluctuations
    • The consumption of fillers can be reduced, as the immediate availability of results and the high accuracy of the ACA enables the narrowing down of the specifications for the filler content in the finished product, resulting in a much more efficiently organized process optimization (e.g. retention optimization)
    • Costs for energy of the combustion process can be saved. Thus, the use of the new measuring device guarantees a fast "return on investment" by a substantial reduction of costs in material, time, and energy
  • Anwender: Chemical suppliers, Paper producers , Paper converters, Board producers , Corrugated board producers , Pulp producers, Universities & Institutes, Producers of pigments
  • Anwendungsgebiete: Process optimization, Product optimization, R&D, Incoming control, Quality assurance, Complaint management, Troubleshooting
  • Ergebnisse:
    • Wert:

      % value

      , Beschreibung:

      Total filler content

    • Wert:

      Individual fillers (%)

      , Beschreibung:

      Calcium carbonate, Titan dioxide, Kaolin/Talcum, Barium sulfate, Iron oxide

  • technische Daten:
    • Titel: device dimensions (H x W x D), Wert: approx. 43.1 x 32.1 x 26.1 cm (folded), Beschreibung: approx. 43.1 x 32.1 x 38.3 cm (unfolded)
    • Titel: weight, Wert: approx. 15 kg
    • Titel: measuring principle , Wert: X-ray fluorescence analysis
    • Titel: radiation source, Wert: X-ray tube (gold, 10 kV, 5 μA)
    • Titel: accuracy of measurement, Wert: approx. ≤ ±1-2 % (abs.)
    • Titel: measurement time, Wert: approx. 60 sec
    • Titel: grammage max., Wert: 1000 g/m2
    • Titel: power supply, Wert: 100 - 240 VAC (50/60 Hz)
  • Downloads:
    • Beschriftung : Leaflet (English), Link: images/stories/infomaterial/02_ACA/01_Leaflet/emtec_ACA_leaflet_en.pdf
    • Beschriftung : Leaflet (French), Link: images/stories/infomaterial/02_ACA/01_Leaflet/emtec_ACA_leaflet_fr.pdf
    • Beschriftung : Leaflet (Spanish), Link: images/stories/infomaterial/02_ACA/01_Leaflet/emtec_ACA_leaflet_es.pdf
    • Beschriftung : Leaflet (Italian), Link: images/stories/infomaterial/02_ACA/01_Leaflet/emtec_ACA_leaflet_it.pdf
    • Beschriftung : Leaflet (Turkish), Link: images/stories/infomaterial/02_ACA/01_Leaflet/emtec_ACA_leaflet_tr.pdf
    • Beschriftung : Leaflet (Swedish), Link: images/stories/infomaterial/02_ACA/01_Leaflet/emtec_ACA_leaflet_se.pdf
    • Beschriftung : Leaflet (Japanese), Link: images/stories/infomaterial/02_ACA/01_Leaflet/emtec_ACA_leaflet_jp.pdf
    • Beschriftung : Leaflet (Chinese), Link: images/stories/infomaterial/02_ACA/01_Leaflet/emtec_ACA_leaflet_zh.pdf
    • Beschriftung : Leaflet (Russia), Link: images/stories/infomaterial/02_ACA/01_Leaflet/emtec_ACA_leaflet_ru.pdf
    • Beschriftung : Leaflet (Polish), Link: images/stories/infomaterial/02_ACA/01_Leaflet/emtec_ACA_leaflet_pl.pdf
    • Beschriftung : Booklet (English), Link: images/stories/infomaterial/02_ACA/02_Booklet/emtec_ACA_Ash_Content_Analyzer_booklet_en.pdf
  • Applikationsbeispiele inaktiv: Nein
  • Applikationsbeispiele: Evaluation of decor paper with the ACA: what fillers and what amount of each is in the paper
  • Videos:
    • Vorschaubild: , Videodatei: images/stories/infomaterial/02_ACA/05_Produktvideos/10_Internet/aca-1080.mp4
  • Zubehör inaktiv: Ja
  • verwandte Produkte: CAS touch! - Charge Analyzing System, EST 12 - Surface and Sizing Tester, FPA touch! - Fiber Potential Analyzer, FPO - Fiber Potential Analyzer online, PDA.C 02 MST - Module Standard, Sample Punch
With a completely new and innovative measuring principle, the emtec ACA Ash Content Analyzer measures the total filler content and the individual fillers, which are typically used in the paper industry, of paper and board. Compared to the traditional combustion method, the ACA measures non-destructive and provides the results within seconds.
  • 360 Grad Bild (HTML Code): <a class="Magic360"><img src="images/stories/produkte/BBT/bbt.png" /></a>
  • Untersuchung von:
    • Eigenschaft: tissue paper
  • Vorteile:
    • Vorteil: menu-driven measurement
    • Vorteil: integrated measurement of ambient temperature and humidity
    • Vorteil: easy handling
    • Vorteil: robust construction
    • Vorteil: objective measuring method
    • Vorteil: free from subjective influences
    • Vorteil: high reproducibility of the results
  • Produktbeschreibung:

    The test piece is fixed between two concentric circular rings. The spherical head is fixed to the retaining arm and once the test is started moves downwards to the test piece at a defined speed until the test piece is punctured. The maximum force for this test is measured and displayed.

    The tissue sheets require the following size: Ø 112.8 mm.

  • Anwender: Chemical suppliers, Tissue producers, Tissue converters, Universities & Institutes
  • Anwendungsgebiete: Production control, Product optimization, Benchmarking, R&D
  • Ergebnisse:
    • Wert: N, Beschreibung: Burst resistance
  • technische Daten:
    • Titel: device dimensions, Wert: 44 x 19 x 47 cm (H x W x D)
    • Titel: weight, Wert: approx. 19 kg
    • Titel: sample dimension, Wert: 11.28 cm (H x W x D)
    • Titel: power supply, Wert: 85-264VAC, 50/60Hz
  • Applikationsbeispiele inaktiv: Ja
  • Zubehör inaktiv: Nein
  • Zubehör: Sample Punch
  • verwandte Produkte: TSA - Tactile Sensation Analyzer, TSA - Tissue Softness Analyzer
The burst resistance measurement (dry) determines the resistance of tissue paper against mechanical penetration by a spherical head. Burst strength in accordance with DIN EN ISO 12625-9:2015-05.
  • 360 Grad Bild (HTML Code): <a class="Magic360" data-options="columns: 72; rows: 1;"><img src="images/stories/produkte/CAS3/360-webp/01.webp" /></a>
  • Untersuchung von:
    • Eigenschaft: particle charge in the fiber
  • Vorteile:
    • Vorteil: smaller and significantly lighter than comparable devices
    • Vorteil: comfortable transport (carry-on-luggage size)
    • Vorteil: state-of-the-art touch screen (including display of the results and curves)
    • Vorteil: external keyboard connectable (via USB or wireless)
    • Vorteil: ready to use without assembling of any further components
    • Vorteil: compact and robust construction
    • Vorteil: can be used as stand-alone device or in connection with a PC
    • Vorteil: adaptation to customer specific needs is possible (e.g. manual vs. automatic titration, titration procedures)
  • Produktbeschreibung:

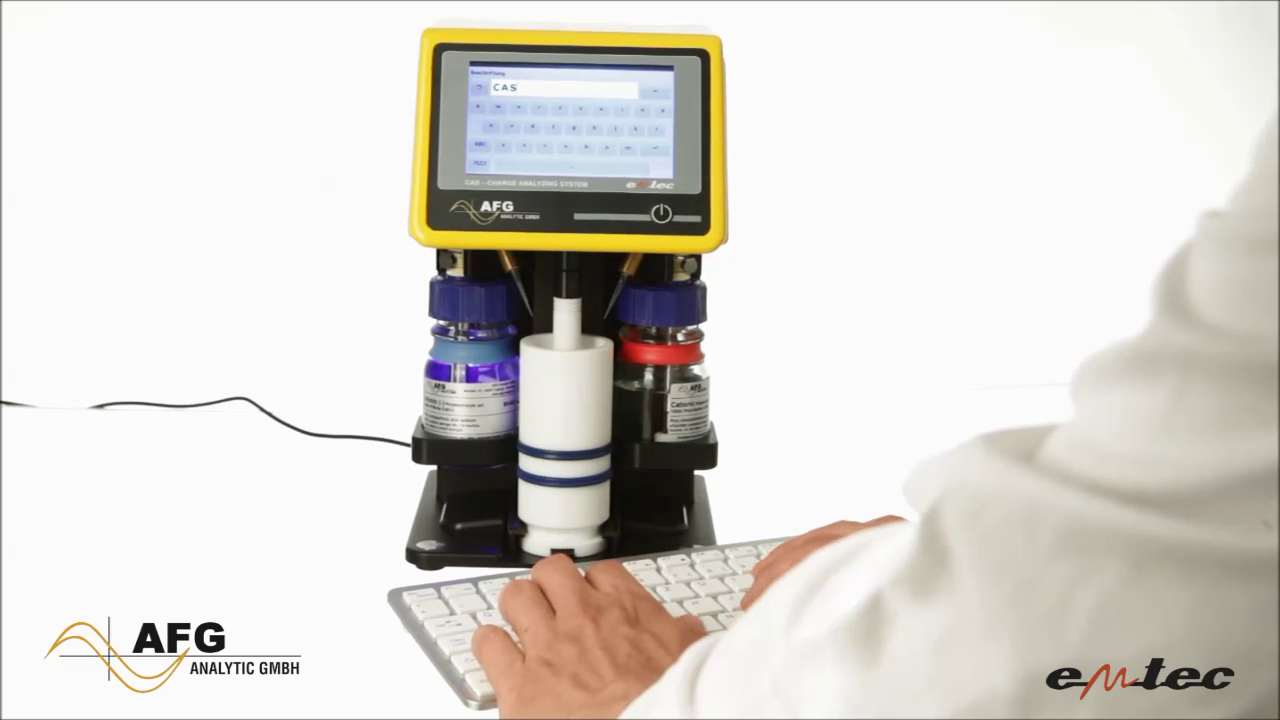

    Using standard techniques of titration, the CAS touch! determines cationic/anionic and acid/base demands of aqueous charge systems. Modern electronic components enable the high accuracy of measurement. Both, Streaming Potential (mV) and pH can be measured simultaneously, making it possible to easily determine isoelectric and flocculation points of a sample and examine the correlation between pH, titrant demand and streaming potential.

    Customer’s choice:

    The CAS touch! uses integrated high precision titrators, optionally with 1 or 2 titration systems (CAS-I touch! or CAS-II touch!), while also a version for use with external or hand titration is available to the customer (CAS-E touch!).

    Measurement / Result evaluation:

    The CAS touch! can be operated via Touch Screen, which displays the data including titration curves, optionally in combination with an external keyboard. Moreover, there is no need to adjust to a new software, as the device can also be used with the common easy-to-handle CAS PC software. The efficient testing procedures implemented in extremely user-friendly PC software make it very easy to handle. Different titration procedures are available: fixed increment titration, dynamic titration and back-titration are selectable from given procedures or are freely configurable. Default standard titration procedures and customer-specific processes can be stored in the CAS touch! via the PC software or Touch Screen. Data can be stored internally as well as externally on an USB flash drive, analyzed with PC software and exported to Excel (only two mouse clicks).

    Transport / Assembly:

    The low weight device can easily be transported in a carry-on size case, which is especially important for chemical suppliers for customer visits. After unpacking the device and connecting it to the mains voltage, the CAS touch! is ready for starting the measurement! There is no complicated assembly and no tubes are needed.

  • Anwender: Chemical suppliers, Paper machine builders, Paper producers , Board producers , Corrugated board producers , Tissue producers, Pulp producers, Universities & Institutes
  • Anwendungsgebiete: Process optimization, Process control, Product optimization, R&D, Complaint management, Troubleshooting
  • Ergebnisse:
    • Wert:

      Streaming potential (mV)

    • Wert:

       pH value

    • Wert:

       cationic/anionic demand (ml)

    • Wert:

      particle charge (mV)

  • technische Daten:
    • Titel: device dimensions, Wert: 17 x 28.5 x 17 cm (W x H x D)
    • Titel: device weight , Wert: approx 3.30 - 4.25 kg (depending on model)
    • Titel: min. sample volume, Wert: 10 ml
    • Titel: maximum conductivity of the sample, Wert: 11 mS/cm (selective sample preparation can be measured for samples with significantly higher conductivity)
    • Titel: dosing system, Wert: selectable final criteria: - pH: 0-14 - mV: -5000 to +5000 - 0-25 ml anionic/cationic demand - 0-25 ml acid/basic demand
  • Downloads:
    • Beschriftung : Leaflet (English), Link: images/stories/infomaterial/09_CAS_touch/01_Leaflet/01_Standard/AFG_CAS_touch_leaflet_en.pdf
    • Beschriftung : Leaflet (French), Link: images/stories/infomaterial/09_CAS_touch/01_Leaflet/01_Standard/emtec_CAS_touch_leaflet_fr.pdf
    • Beschriftung : Leaflet (Spanish), Link: images/stories/infomaterial/09_CAS_touch/01_Leaflet/01_Standard/emtec_CAS_touch_leaflet_es.pdf
    • Beschriftung : Leaflet (Italian), Link: images/stories/infomaterial/09_CAS_touch/01_Leaflet/01_Standard/emtec_CAS_touch_leaflet_it.pdf
    • Beschriftung : Leaflet (Turkish), Link: images/stories/infomaterial/09_CAS_touch/01_Leaflet/01_Standard/emtec_CAS_touch_leaflet_tr.pdf
    • Beschriftung : Leaflet (Swedish), Link: images/stories/infomaterial/09_CAS_touch/01_Leaflet/01_Standard/emtec_CAS_touch_leaflet_se.pdf
    • Beschriftung : Leaflet (Japanese), Link: images/stories/infomaterial/09_CAS_touch/01_Leaflet/01_Standard/emtec_CAS_touch_leaflet_jp.pdf
    • Beschriftung : Leaflet (Chinese), Link: images/stories/infomaterial/09_CAS_touch/01_Leaflet/01_Standard/emtec_CAS_touch_leaflet_zh.pdf
    • Beschriftung : Leaflet (Russian), Link: images/stories/infomaterial/09_CAS_touch/01_Leaflet/01_Standard/emtec_CAS_touch_leaflet_ru.pdf
    • Beschriftung : Leaflet (Polish), Link: images/stories/infomaterial/09_CAS_touch/01_Leaflet/01_Standard/emtec_CAS_touch_leaflet_pl.pdf
    • Beschriftung : Booklet (English), Link: images/stories/infomaterial/09_CAS_touch/02_Booklet/Application_booklet_CAS_touch_and_FPA_touch_en.pdf
  • Applikationsbeispiele inaktiv: Nein
  • Applikationsbeispiele: CAS touch! (cationic demand) and FPA touch! (Zeta Potential) in the process, Process optimization with the CAS touch! (particle charge) and FPA touch! (zeta potential)
  • Videos:
    • Vorschaubild: , Videodatei: images/stories/infomaterial/09_CAS_touch/05_Produktvideos/10_Internet/cas-touch-1080.mp4
  • Zubehör inaktiv: Ja
  • verwandte Produkte: FPA touch! - Fiber Potential Analyzer, FPO - Fiber Potential Analyzer online
The CAS touch! Charge Analyzing System combines proven methods of particle charge measurement  with  the  known great simplicity of handling and  functioning of the previous CAS versions, but enhanced with new features and an immense reduction in weight and size.
  • Vorteile:
    • Vorteil: saves a great deal of time because the subsequent deaeration of the coating color is no longer necessary because of the improved dispersion and mixing
  • Produktbeschreibung:

    Specialties

    • practice-related preparation based upon the rotor-stator principle of the dispersion and mixing tool (CCM)
    • as an additional function: measuring the air content of coating colors is possible in a very simple fashion
  • technische Daten:
    • Titel: Weight, Wert: approximately 20 kg (CDM 02)
    • Titel: Required space, Wert: approximately 1.0 m x 0.8 m laboratory working table
    • Titel: Quantity of liquid, Wert: max. 1.5 l
    • Titel: Supply voltage, Wert: 230V, 50Hz / or 115V, 60Hz
  • Applikationsbeispiele inaktiv: Nein
  • Zubehör inaktiv: Nein
Laboratory system for the measurement of the air content, for air entrainmentfree dispersion and mixing as well as for subsequent deaeration of coating colors
German-based testing device manufacturer emtec Electronic will exhibit an innovative product portfolio designed to improve processes and product quality, reduce waste and save energy at the Paper & Biorefinery trade conference from May 24-25 in Graz, Austria. Organized by the Academic Paper Engineering Association of the Graz University of Technology (APV Graz), the annual trade fair brings together major names and newcomers from the pulp, paper and board industries for two days of idea exchange and networking. This year’s focus is on sustainable energy solutions, and the lineup includes...
German device manufacturer emtec Electronic GmbH presents an inventive product line of specialized testing and measuring equipment at the renowned TAPPICon convention for pulp, paper and cardboard professionals from April 22-26, 2023 in Atlanta, Georgia.   The demand for paper products remains significant even in the digital age, with the global pulp and paper industry expected to reach a value of roughly 373 billion U.S. dollars by 2029, according to market analyst Statista. Yet consumer preferences are also changing, with a greater focus on sustainable and socially responsible products. At...
  • 360 Grad Bild (HTML Code): <a class="Magic360" data-options="columns: 73; rows: 1;"><img src="images/stories/produkte/DFA/360-webp/01.webp" /></a>
  • Untersuchung von:
    • Eigenschaft: flocculants, retention agents and various additives
  • Vorteile:
    • Vorteil: simulation of the dynamic situation in the wet-end range by adjustable stirring profile (defined entry of shear forces) and interchangeable screens, use of customer-specific screens optionally possible
    • Vorteil: lightweight construction
    • Vorteil: fast and repeatable (automated) measurement sequence
    • Vorteil: reproducible and sensitive measurement method
    • Vorteil: illustration of the dewatering behavior via graphs
    • Vorteil: data storage and evaluation possibilities via the software
    • Vorteil: investigation of the interaction of additives on the flocculation process
    • Vorteil: setermination of product efficiency in product alternatives
    • Vorteil: combination of dewatering and retention measurement in one device, based on the Schopper-Riegler method to measure the dewatering and on the classic dynamic Drainage Yar Method for the determination of the retention (two in one)
    • Vorteil: analysis of the performance of flocculation agents, retention aid and diverse other additives
  • Produktbeschreibung:

    A PC operates the DFA. The user-friendly software controls the measurement and allows a sophisticated analysis and reporting of all results. In order to simulate different process conditions, all relevant data to configure a mixing profile is stored and used for automatic measurements.

    The user selects a mixing profile or sets all relevant mixing parameters before starting the measurement. After that, the DFA stirring chamber fills with the fiber suspension. The selected set mixing profile starts to stir the suspension as per set parameters. A dosage of chemical additives during the stirring process is possible to influence the drainage and retention process. Thru the use of audible prompts the user is notified when to introduce any chemicals. A valve opens automatically when the mixing process is finished. Filtration through selected screen starts immediately.

    Filtrate is continuously measured with approximately five sample points per second. The quantity of filtrate is shown on a graph as a function of time. The computer software allows displaying different graphs, comparing results, adding all kinds of parameters to graphs or creating comparable graphs. E.g., the quantity of dosed chemicals can be compared to the dehydration velocity. The export of all measurement data into an EXCEL-spread sheet for further analysis and data storage is possible. The instrument also has an integrated pH-measurement.

    Retention Measurement:

    The DFA system is equipped with the possibility to calculate Total Retention and Filler Retention. A filtrate is produced by the DFA system for determining the retention. Different practical filtration conditions can be simulated with a magnetic valve under the filter and different mixing gears. The filter remains clean by the mixing gear. The user has to enter the filler content or the overall solid content of the filtrate and the sample in the PC and get the total or filler retention by the DFA software.

  • Anwender: Chemical suppliers, Paper machine builders, Paper producers , Board producers , Corrugated board producers , Pulp producers, Universities & Institutes
  • Anwendungsgebiete: Process optimization, Process control, Product optimization, R&D, Complaint management, Troubleshooting
  • Ergebnisse:
    • Wert:

      Drainage curves (time/filtrate amount)

    • Wert:

      Overall retention

    • Wert:

      Filler retention

    • Wert:

      pH value

  • technische Daten:
    • Titel: device dimensions, Wert: 18.9 x 25.5 x 50.1 cm (W x D x H)
    • Titel: weight, Wert: 17.5 kg
    • Titel: power supply, Wert: input voltage: 85 - 264 V AC Frequency: 47 - 63 Hz Consumption maximum: 80W Fuses of the device: 1 x 10 A slow-blow
    • Titel: operating condition, Wert: Surrounding: +10°C [+50°F] to +40°C [104°F]; not condensation
    • Titel: transport and storage condition, Wert: Surrounding: -10°C [+50°F] to +40°C [+140°F]
  • Downloads:
    • Beschriftung : Leaflet (English), Link: images/stories/infomaterial/12_DFA/01_Leaflet/AFG_DFA_leaflet_en.pdf
  • Applikationsbeispiele inaktiv: Ja
  • Zubehör inaktiv: Ja
  • verwandte Produkte: CAS touch! - Charge Analyzing System, FPA touch! - Fiber Potential Analyzer
The DFA Dynamic Filtration Analyzer determines quickly and accurately the influence of chemicals on the filtration characteristics of fiber suspensions by an automatic analysis of drainage and retention.
  • 360 Grad Bild (HTML Code): <a class="Magic360" data-options="columns: 73; rows: 1;"><img src="images/stories/produkte/HSA/360-webp/01.webp" /></a>
  • Untersuchung von:
    • Eigenschaft: paper
    • Eigenschaft: board
    • Eigenschaft: foils
  • Vorteile:
    • Vorteil: high accuracy
    • Vorteil: measuring temperature: from ambient temperature up to max. 230°C (heat shrinkage)
    • Vorteil: efficient and user-friendly Software
    • Vorteil: export of the measuring data to Excel
    • Vorteil: easy to handle
    • Vorteil: compact and robust construction
    • Vorteil: temperature settings via PC software
    • Vorteil: integrated measurement of the environmental humidity and temperature as well as of the moisture of the sample
    • Vorteil: change of the dimension in machine and cross direction is possible
  • Produktbeschreibung:

    The device can mainly be used to evaluate and predict the printability of laser print and copy paper (for professional applications). Besides these, the accuracy of fit in case of laser, offset and gravure printing can be optimized and problems with the stacking of paper in professional copy machines, laser printers and offset printing machines can be avoided. Also pre-impregnates, OPP films, wall papers and special filter papers can be measured.

  • Anwender: Paper producers , Paper converters, Board producers , Board converters, Corrugated board producers , Printing machine builders, Universities & Institutes
  • Anwendungsgebiete: Process optimization, Process control, R&D, Incoming control, Quality assurance
  • Ergebnisse:
    • Wert:

      shrinkage-time-diagram

      , Beschreibung:

      shrinkage at a time point t

  • technische Daten:
    • Titel: device dimensions, Wert: 29.5 x 28 x 32 cm (H x W x D)
    • Titel: weight, Wert: approx. 15 kg
    • Titel: accuracy, Wert: +/- 0,05% abs. +/- 5%rel.
    • Titel: operating voltage, Wert: 115V 60Hz / 220V 50Hz
    • Titel: resolution, Wert: 0,013%
    • Titel: range of temperature, Wert: from ambient temperature up to 230°C
  • Downloads:
    • Beschriftung : Leaflet (English), Link: images/stories/infomaterial/07_DSS/02_HSA/01_Leaflet/emtec_HSA_leaflet_en.pdf
  • Applikationsbeispiele inaktiv: Ja
  • Zubehör inaktiv: Ja
  • verwandte Produkte: DSS Module WSD 02 - Wet Stretch Dynamics Analyzer
Measuring device to measure the dimension stability of paper/board and films under influence of heat (heat shrinkage). The HSA Heat Shrinkage Analyzer helps to predict the converting properties of paper/liner board/films regarding their dimension stability under thermal load of up to approx. 230°C.
  • 360 Grad Bild (HTML Code): <a class="Magic360" data-options="columns: 73; rows: 1;"><img src="images/stories/produkte/WSD/360-webp/01.webp" /></a>
  • Untersuchung von:
    • Eigenschaft: paper
  • Vorteile:
    • Vorteil: fast contacting of the paper and liquid, important especially for high absorbent paper
    • Vorteil: real trial conditions by adjustable tightness
    • Vorteil: objective measuring method, free of subjective errors
    • Vorteil: high reproducibility of the results: ±0.05% of result
    • Vorteil: accuracy better than ± 0,1% abs. ± 5% of the analytical value in the area of 0 to 3% stretching
    • Vorteil: resolution approx. ± 0,013%
    • Vorteil: easy handling
    • Vorteil: integrated measurement of paper moistness and humidity, ambient temperature
  • Produktbeschreibung:

    The devices measures the dynamic of the of the change in dimension (stretching/shrinking) of paper, board and other materials as soon as it comes to an one-sided contact with the test liquid. Especially interesting is the measurement of décor paper under one-sided liquid contact (e.g. water, melamine resin and others). In addition, the change of the dimension of gypsum board, coating base paper, newsprint or offset printing papers can be measured under one-sided contact with water or inkjet ink.

    The WSD02 replaces the classic methods to measure wet stretch behavior, which function under two-sided contact of the test liquid.



    The measuring area:

    • Wet expansion to a maximum of 27%, measuring duration unlimited
    • Recording the expansion from the moment of liquid contact and displaying the results from approx. 100 ms after initial contact
  • Anwender: Chemical suppliers, Paper producers , Paper converters, Board producers , Board converters, Corrugated board producers
  • Anwendungsgebiete: Process optimization, Process control, Product optimization, R&D, Incoming control, Quality assurance
  • Ergebnisse:
    • Wert:

      Expansion-time diagram

    • Wert:

      Expansion value at a free selectable time point

  • technische Daten:
    • Titel: device dimensions, Wert: 30 x 28 x 32 cm (H x W x D)
    • Titel: weight, Wert: 8.5 kg
    • Titel: power supply, Wert: 230V, 50Hz / 115V, 60Hz
    • Titel: sample dimension, Wert: min. 210mm x (60±0.5)mm
  • Downloads:
    • Beschriftung : Leaflet (English), Link: images/stories/infomaterial/07_DSS/01_WSD02/01_Leaflet/01_Standard/emtec_WSD02_leaflet_en.pdf
    • Beschriftung : Leaflet (Russia), Link: images/stories/infomaterial/07_DSS/01_WSD02/01_Leaflet/01_Standard/emtec_WSD02_leaflet_ru.pdf
  • Applikationsbeispiele inaktiv: Ja
  • Zubehör inaktiv: Ja
  • verwandte Produkte: DSS Module HSA - Heat Shrinkage Analyzer
The WSD02 Wet Stretch Dynamics Analyzer is a test device, which measures the wet expansion of paper under one-sided contact with water or other test liquids.
The largest convention for the pulp and paper industry in Central and South America, the International Congress and ExpoAcotepac 2023, will take place in Cali, Colombia from February 8-10, 2023. IDM Test will be onsite to present innovative testing devices for quality control and product optimization at the event, including the emtec Electronic product line.   Accurate data regarding the cationic demand and zeta potential of fibers in the wet end of papermaking leads to a smoother running process and higher product quality. With this end in mind, emtec Electronic GmbH developed the partner...
Leipzig-based testing equipment manufacturer emtec Electronic will present progressive solutions for reducing broke, automating processes, and optimizing product quality at the Zellcheming Expo from June 20-22 in Wiesbaden, Germany.  Accurate testing is key to ensuring an efficient papermaking process and a high product quality. From knowledge of the pulp, to the mineral filler content, surface porosity, hydrophobia and haptics, having reliable data on hand enables manufacturers to achieve their production goals and a quick Return-On-Investment. In addition, easy digitization of the results...
The Leipzig-based manufacturer of testing equipment for the pulp, paper, tissue and board industry will present solutions to automate quality control and improve product quality from June 12-14 at the XV Scientific and Technical Conference and Exhibition INPAP 2023 in Lodz.  The INPAP Conference, hosted by the Centre of Papermaking and Printing at Lodz University of Technology, brings together industry professionals to present scientific research regarding new developments in the manufacture of pulp, paper, tissue and board. Emtec Electronic will be attending the event as an exhibitor to present...
German-based testing device manufacturer emtec Electronic GmbH will present progressive solutions for automation, waste reduction, and energy savings at the Pulp & Beyond, formerly known as PulPaper, from April 9-11 in Helsinki, Finland. Accurate testing is crucial to ensure an efficient papermaking process and high product quality. To achieve these production goals in a cost-effective and energy-efficient manner, manufacturers need reliable data on various factors such as fiber and particle charge in the wet-end, mineral filler content in the paper or the haptic properties of tissue paper....
  • 360 Grad Bild (HTML Code): <a class="Magic360" data-options="columns: 73; rows: 1;"><img src="images/stories/produkte/EST/360-webp/01.webp" /></a>
  • Untersuchung von:
    • Eigenschaft: paper
    • Eigenschaft: board
  • Vorteile:
    • Vorteil: measurement of the converting-relevant parameters surface sizing/surface hydrophobia and surface porosity
    • Vorteil: measured parameters help to optimize the converting process and the product quality, for example by adapting the converting process to the quality of the incoming paper or board
    • Vorteil: reliable and accurate test results, which help to solve issues in the converting process and with the product quality, where standard test devices are no help
    • Vorteil: Stand-alone device (connection to a PC and use with emtec PC software possible)
    • Vorteil: small and easy to transport, especially good for chemical suppliers
  • Produktbeschreibung:

    To make sure that the necessary product quality can be reached, specifications are agreed between paper maker and converter. These specifications are bases on standard test devices, such as Cobb or Gurley. But often it happens that although the quality of the base paper or board is within the agreed specifications, issues with the gluability, printability or coating-ability occur during the converting.

    Since gluability, printability and coating-ability mainly depend on surface sizing and surface porosity, information about these two parameters are very important. But the standard test devices are not able to measure them. In comparison to this, the emtec EST is able to measure these two very important surface parameters within the time that is relevant for the converting process and by this helps to ensure a well-running converting process and the right product quality.

  • Anwender: Chemical suppliers, Paper producers , Paper converters, Board producers , Board converters, Corrugated board producers , Universities & Institutes
  • Anwendungsgebiete: Process optimization, Product optimization, Benchmarking, R&D, Incoming control, Quality assurance, Complaint management, Troubleshooting
  • Ergebnisse:
    • Wert:

      MAX value

      , Beschreibung:

      surface sizing/hydrophobia

    • Wert:

      t95 value Max

      , Beschreibung:

      surface porosity

  • technische Daten:
    • Titel: device dimensions, Wert: 25 x 14 x 25 cm (H x W x D)
    • Titel: weight, Wert: approx. 4 kg / 8.8 lbs
    • Titel: measuring frequencies, Wert: 1 MHz, 2 MHz selectable
    • Titel: supply voltage, Wert: 100-240 VAC, 50/60 Hz
    • Titel: sample dimension, Wert: 75 x 50 mm
  • Downloads:
    • Beschriftung : Leaflet (English), Link: images/stories/infomaterial/05_EST/01_Leaflet/emtec_EST12_leaflet_en.pdf
    • Beschriftung : Leaflet (French), Link: images/stories/infomaterial/05_EST/01_Leaflet/emtec_EST12_leaflet_fr.pdf
    • Beschriftung : Leaflet (Spanish), Link: images/stories/infomaterial/05_EST/01_Leaflet/emtec_EST12_leaflet_es.pdf
    • Beschriftung : Leaflet (Italian), Link: images/stories/infomaterial/05_EST/01_Leaflet/emtec_EST12_leaflet_it.pdf
    • Beschriftung : Leaflet (Turkish), Link: images/stories/infomaterial/05_EST/01_Leaflet/emtec_EST12_leaflet_tr.pdf
    • Beschriftung : Leaflet (Swedish), Link: images/stories/infomaterial/05_EST/01_Leaflet/emtec_EST12_leaflet_se.pdf
    • Beschriftung : Leaflet (Japenese), Link: images/stories/infomaterial/05_EST/01_Leaflet/emtec_EST12_leaflet_jp.pdf
    • Beschriftung : Leaflet (Chinese), Link: images/stories/infomaterial/05_EST/01_Leaflet/emtec_EST12_leaflet_zh.pdf
    • Beschriftung : Leaflet (Russia), Link: images/stories/infomaterial/05_EST/01_Leaflet/emtec_EST12_leaflet_ru.pdf
    • Beschriftung : Leaflet (Polish), Link: images/stories/infomaterial/05_EST/01_Leaflet/emtec_EST12_leaflet_pl.pdf
    • Beschriftung : Booklet (English), Link: images/stories/infomaterial/05_EST/02_Booklet/01_EN/emtec_EST_Surface_and_Sizing_Tester_booklet_en.pdf
  • Applikationsbeispiele inaktiv: Nein
  • Applikationsbeispiele: Evaluation of the surface hydrophobia (Cobb60 vs. emtec EST)
  • Zubehör inaktiv: Ja
  • verwandte Produkte: PDA.C 02 MST - Module Standard
The emtec EST Surface & Sizing Tester helps to predict the gluability, printability and coating-ability of paper and board by measuring the converting-relevant parameters surface sizing (surface hydrophobia) and surface pore structure.
  • 360 Grad Bild (HTML Code): <a class="Magic360" data-options="columns: 72; rows: 1;"><img src="images/stories/produkte/FPA3/360-webp/01.webp" /></a>
  • Untersuchung von:
    • Eigenschaft: surface loads of fibres and fillers
  • Vorteile:
    • Vorteil: smaller and significantly lighter than comparable devices
    • Vorteil: state-of-the-art capacitive Touch Screen
    • Vorteil: external keyboard
    • Vorteil: storage of data internally or on USB flash drive or the PC, if connected
    • Vorteil: for titration of liquids, titrator can be connected
    • Vorteil: ready to use without assembly of further components
    • Vorteil: easy handling, clear and simple-to-understand measuring procedures
    • Vorteil: compact and robust construction
    • Vorteil: filtrate removal for CAS touch! measurements
    • Vorteil: fully automatic measuring and cleaning procedure (menu-controlled), automatic pressure control and removal of the fiber plug after the measurement
    • Vorteil: pH measurement optional
    • Vorteil: integrated vacuum pump is water protected: pump cannot be destroyed by filtrate overflow (No big and noisy external vacuum pump)
    • Vorteil: no external connection cable for electrodes - thereby prevention of handling errors
    • Vorteil: display of measuring results on touch screen or via high-performance PC Software with display of trends
  • Produktbeschreibung:

    The new FPA touch! Fiber Potential Analyzer combines proven methods of Zeta Potential measurement with the known great simplicity of handling and functioning of the previous FPA versions, but enhanced with new features and an immense reduction in weight and size.

    Surface charges of fibers, fillers, particles or colloidally dissolved substances in stock suspension are defined by the Zeta Potential on their surfaces. The charge of the stock suspension can be split into the colloidal and particle charge, measured with the CAS touch! Charge Analyzing System, while the fiber and filler charge is measured with the FPA touch! Fiber Potential Analyzer. All both charge levels together define the overall Zeta Potential of fiber suspensions.

    The knowledge of the fiber charges in the pulp is the key for optimized dosage of chemical aids, which should be adsorbed onto the surface of the fiber. The mostly negatively (anionic) charged fiber is adsorbing the positive (cationic) charged additives in the papermaking process. The optimized dosage of such aids always depends on the Zeta Potential within the pulp.

    The FPA touch! is designed to determine the Zeta Potential of fibers according to the HelmholtzSmoluchowski equation by simultaneously measuring conductivity, pressure and the streaming current potential. The measuring principle is based on the streaming current potential measuring method in a fiber plug. That fiber plug is automatically building up on a screen electrode in the measuring cell of the FPA by a vacuum. By periodically changing the vacuum during the measurement the charge clouds absorbed on the fibers are moving with the liquid stream and generating the streaming current potential measured by the screen and ring electrode.

    The knowledge of the fiber charge enables a correct and effective dosage of the charged chemical additives. The fiber adsorption of cationic starch, wet strength resin, and many other chemical aids can be easily measured with original samples on-site to optimize the dosage of chemicals in the wet end of the paper manufacturing process.

  • Anwender: Chemical suppliers, Paper machine builders, Paper producers , Board producers , Corrugated board producers , Tissue producers, Pulp producers, Universities & Institutes
  • Anwendungsgebiete: Process optimization, Product optimization, R&D, Incoming control, Quality assurance, Complaint management, Troubleshooting, Marketing & Sales
  • Ergebnisse:
    • Wert:

      Zeta Potential (mV)

    • Wert:

       Conductivity (mS/cm)

    • Wert:

      Streaming Potential (mV)

  • technische Daten:
    • Titel: device dimensions, Wert: 17 x 28.5 x 17 cm (H x W x D)
    • Titel: weight, Wert: approx. 5.9 kg , Beschreibung: with transport case approx. 12 kg
    • Titel: sample volume, Wert: 400-800 ml
    • Titel: power supply, Wert: 100-240 VAC 50/60 Hz 40W
    • Titel: available electrode screens, Wert: 30-315 micrometer
  • Downloads:
    • Beschriftung : Leaflet (English), Link: images/stories/infomaterial/10_FPA_touch/01_Leaflet/AFG_FPA_touch_leaflet_en.pdf
    • Beschriftung : Leaflet (Russia), Link: images/stories/infomaterial/10_FPA_touch/01_Leaflet/AFG_FPA_touch_leaflet_ru.pdf
    • Beschriftung : Booklet (English), Link: images/stories/infomaterial/10_FPA_touch/02_Booklet/Application_booklet_CAS_touch_and_FPA_touch_en.pdf
  • Applikationsbeispiele inaktiv: Nein
  • Applikationsbeispiele: CAS touch! (cationic demand) and FPA touch! (Zeta Potential) in the process, Process optimization with the CAS touch! (particle charge) and FPA touch! (zeta potential)
  • Zubehör inaktiv: Ja
  • verwandte Produkte: CAS touch! - Charge Analyzing System, FPO - Fiber Potential Analyzer online
The FPA touch! Fiber Potential Analyzer combines proven methods of Zeta Potential measurement with the known great simplicity of handling and functioning of the previous FPA versions, but enhanced with new features and an immense reduction in weight and size.
  • 360 Grad Bild (HTML Code): <img src="images/stories/produkte/FPO/fpo.png" />
  • Untersuchung von:
    • Eigenschaft: paper
    • Eigenschaft: board
  • Vorteile:
    • Vorteil: fully automatic operation (sample taking, measurement, cleaning)
    • Vorteil: integrated switch for two independent sampling points
    • Vorteil: low maintenance
    • Vorteil: high accuracy and reproducibility
    • Vorteil: data transfer by standard interface to the process control system (optional: data storage on web server)
    • Vorteil: savings in material, time and energy
  • Produktbeschreibung:

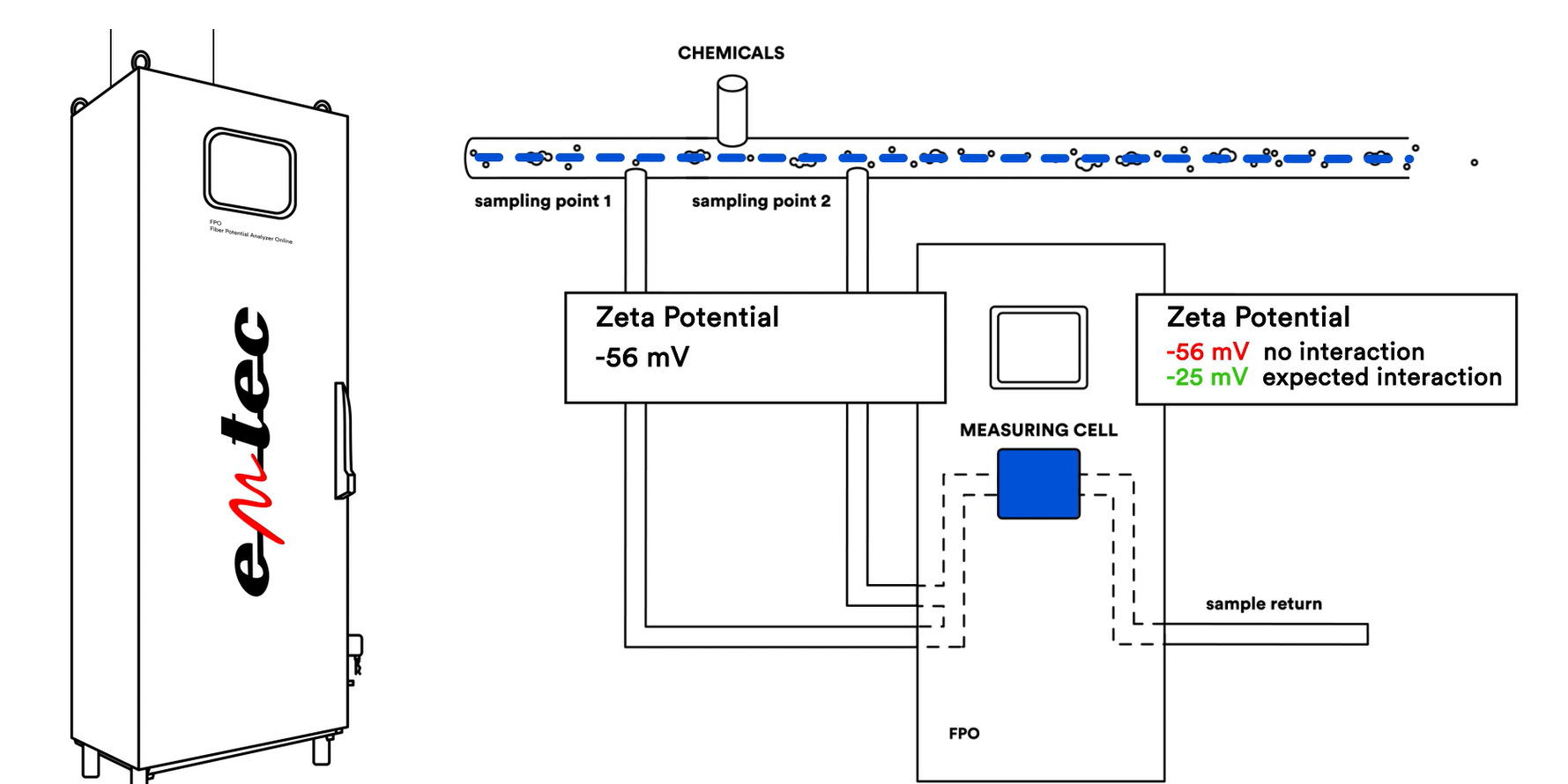

    Until now, the zeta potential of fibers and fillers was determined by the help of lab devices (FPA/FPA touch! Fiber Potential Analyzer). Because of the time difference between sample taking and availability of the test results, a reaction to changes in the process is only possible with delay. Besides this, there is not enough time for a permanent process control, with the FPA/FPA touch!.

    The new emtec FPO Fiber Zeta Potential Analyzer online uses the established measuring principle of the lab device FPA/FPA touch! and provides accurate results fast and reliable. This allows an immediate change of process settings in case it becomes necessary, which at the end helps to save money, time and material.

  • Anwender: Chemical suppliers, Paper machine builders, Paper producers , Board producers , Corrugated board producers , Universities & Institutes
  • Anwendungsgebiete: Process optimization, Production control, R&D, Quality assurance, Complaint management, Troubleshooting
  • Ergebnisse:
    • Wert:

      Zeta potential (mV)

    • Wert:

      Conductivity (mS/cm)

    • Wert:

      Streaming potential (mV)

  • technische Daten:
    • Titel: device dimensions, Wert: 60 x 175 x 41 cm (W x H x D)
    • Titel: device weight, Wert: approx. 160 kg
    • Titel: power supply, Wert: 100-240 VAC, 50/60 Hz
    • Titel: maintenance interval, Wert: 6 months recommended
    • Titel: rinsing water supply, Wert: at least 2 bar at least 5 bar for optional cleaning
    • Titel: compresses air , Wert: at least 6 bar
    • Titel: accuracy, Wert: approx. 3-5 %
    • Titel: data-storage , Wert: approx. 100.000 measurements (at least 3 years)
    • Titel: measurement interval, Wert: adjustable, depending on the cleaning effort max. 6 per hour (3 per channel)
  • Downloads:
    • Beschriftung : Leaflet (English), Link: images/stories/infomaterial/03_FPO/01_Leaflet/emtec_FPO_leaflet_en.pdf
    • Beschriftung : Leaflet (French), Link: images/stories/infomaterial/03_FPO/01_Leaflet/emtec_FPO_leaflet_fr.pdf
    • Beschriftung : Leaflet (Spanish), Link: images/stories/infomaterial/03_FPO/01_Leaflet/emtec_FPO_leaflet_es.pdf
    • Beschriftung : Leaflet (Italian), Link: images/stories/infomaterial/03_FPO/01_Leaflet/emtec_FPO_leaflet_it.pdf
    • Beschriftung : Leaflet (Turkish), Link: images/stories/infomaterial/03_FPO/01_Leaflet/emtec_FPO_leaflet_tr.pdf
    • Beschriftung : Leaflet (Swedish), Link: images/stories/infomaterial/03_FPO/01_Leaflet/emtec_FPO_leaflet_se.pdf
    • Beschriftung : Leaflet (Japanese), Link: images/stories/infomaterial/03_FPO/01_Leaflet/emtec_FPO_leaflet_jp.pdf
    • Beschriftung : Leaflet (Chinese), Link: images/stories/infomaterial/03_FPO/01_Leaflet/emtec_FPO_leaflet_zh.pdf
    • Beschriftung : Leaflet (Russia), Link: images/stories/infomaterial/03_FPO/01_Leaflet/emtec_FPO_leaflet_ru.pdf
    • Beschriftung : Leaflet (Polish), Link: images/stories/infomaterial/03_FPO/01_Leaflet/emtec_FPO_leaflet_pl.pdf
    • Beschriftung : Booklet (English), Link: images/stories/infomaterial/03_FPO/02_Booklet/emtec_FPO_Fiber_Potential_Analyzer_online_booklet_en.pdf
  • Applikationsbeispiele inaktiv: Ja
  • Videos:
    • Vorschaubild: , Videodatei: images/stories/infomaterial/03_FPO/05_Produktvideos/10_Internet/fpo-1080.mp4
  • Zubehör inaktiv: Ja
  • verwandte Produkte: CAS touch! - Charge Analyzing System, FPA touch! - Fiber Potential Analyzer

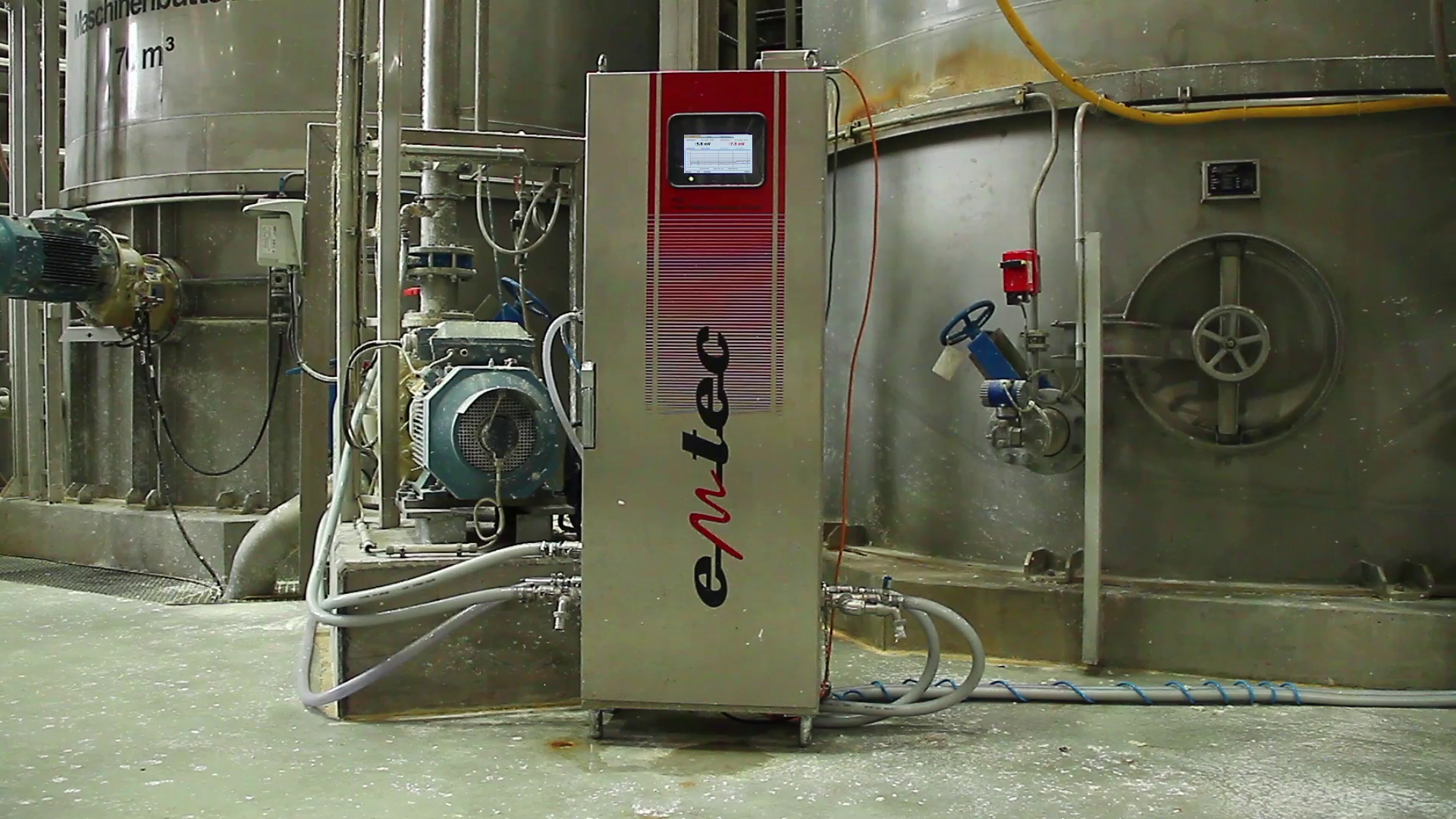

The FPO Fiber Zeta Potential Analyzer Online is an innovative measuring device for the fully automatic and accurate determination of the Zeta Potential of fibers and fillers in the paper and board production process.
The 3rd international exhibition of machinery and equipment for pulp, paper and cardboard, SPAPER, will take place from March 7-9, 2023 in Zaragoza, Spain. emtec Electronic GmbH will be represented at the event by IDM Test. In the face of current economic and environmental challenges, paper manufacturers are increasingly looking for innovative technologies and equipment to streamline production processes and reduce waste. In March, the 3rd edition of the Feria de Zaragoza SPaper convention will bring together industry professionals from all over to present management solutions for the entire...
Alongside digital and partly fully automatic testing solutions for the accurate determination of zeta potential and cationic demand, the German manufacturer emtec Electronic presents the redesigned TSA Tactile Sensation Analyzer at Booth 161 from October 11-13 at the MIAC 2023 in Lucca, Italy.  Equipment manufacturer emtec Electronic GmbH will participate as an exhibitor at the MIAC conference, presenting a range of solutions to common issues in the industry, such as resource waste in the wet-end, and the objective determination of advanced haptic parameters.  emtec Electronic addresses each...
  • 360 Grad Bild (HTML Code): <img src="images/stories/produkte/400/osb.png" />
  • Produktbeschreibung:

    Sample preparation for PDA.C 02 measurements: the air which is displaced by the penetrating liquid may escape through the backside of the sample

    • Determination of the soaking time of decor paper (printed and unprinted)
    • Determination of the resin absorption of decor paper
    • Measurement of the oil absorption of newsprint paper
  • Anwender: Chemical suppliers, Paper machine builders, Paper producers , Paper converters, Board producers , Board converters, Corrugated board producers , Universities & Institutes
  • Anwendungsgebiete: R&D, Incoming control, Quality assurance
  • technische Daten:
    • Titel: device dimensions, Wert: 17 x 12 x 24 cm (H x W x D)
    • Titel: weight , Wert: approx. 4 kg
  • Applikationsbeispiele inaktiv: Ja
  • Zubehör inaktiv: Ja
  • verwandte Produkte: PDA.C 02 MSC - Module Standard Coating, PDA.C 02 MST - Module Standard
Accessory for sample preparation for measurements with open sample backside for PDA.C 02 Module and Module Standard Coating
  • 360 Grad Bild (HTML Code): <a class="Magic360" data-options="columns: 73; rows: 1;"><img src="images/stories/produkte/HVL/360-webp/01.webp" /></a>
  • Vorteile:
    • Vorteil: measured parameters help to optimize the converting process and the product quality, for example by adapting the converting process to the quality of the incoming paper or board
    • Vorteil: modular system (e.g., Module HVL for tests with high viscous liquids or the Module Standard Coating for tests with coating color)
    • Vorteil: reliable and accurate test results, which help to solve issues in the converting process and with the product quality, where standard test devices are no help
    • Vorteil: no cleaning after measurement
    • Vorteil: only little amounts of test liquid are necessary: 3.5ml
    • Vorteil: easy handling
    • Vorteil: part of the modular system emtec PDA.C02
  • Produktbeschreibung:

    To make sure that the necessary product quality can be reached, specifications are agreed between paper maker and converter. These specifications are bases on standard test devices, such as Cobb or Gurley. But often it happens that although the quality of the base paper or board is within the agreed specifications, issues with the gluability, printability or coating-ability occur during the converting.

    Since gluability, printability and coating-ability mainly depend on surface sizing and surface porosity, information about these two parameters are very important. But the standard test devices are not able to measure them. In comparison to this, the emtec PDA is able to measure these two very important surface parameters within the time that is relevant for the converting process and by this helps to ensure a well-running converting process and the right product quality.



  • Anwender: Paper producers , Paper converters, Board producers , Board converters, Corrugated board producers , Universities & Institutes
  • Anwendungsgebiete: Production control, Product optimization, R&D, Troubleshooting
  • Ergebnisse:
    • Wert:

      I(t)

      , Beschreibung:

      transmission in time

    • Wert:

      t(I)

      , Beschreibung:

      time of a defined transmission

  • technische Daten:
    • Titel: device dimensions, Wert: basic device 42 x 16 x 32 cm (H x W x D) , Beschreibung: Motor Control Unit 11 x 16 x 24 cm (H x W x D)
    • Titel: weight, Wert: approx. 19 kg
    • Titel: operating voltage, Wert: 115-230 VAC, 50-60 Hz
    • Titel: volume of testing liquids, Wert: 3.5 ml
    • Titel: PC software, Wert: all common operating systems
    • Titel: sensor diameter, Wert: 3.5 cm
    • Titel: measuring frequency, Wert: 1MHz
    • Titel: data structure, Wert: ASCII
    • Titel: measuring range, Wert: grammages up to approx. 600 g/m², Beschreibung: liquid viscosities up to 150.000 mPa.s
  • Downloads:
    • Beschriftung : Leaflet (English), Link: images/stories/infomaterial/04_PDA.C02_alle_Module/02_PDA_HVL/01_Leaflet/emtec_PDA.C02_HVL_leaflet_en.pdf
  • Applikationsbeispiele inaktiv: Nein
  • Zubehör inaktiv: Nein
  • Zubehör: SPM - Sample Preparation Machine
  • verwandte Produkte: PDA.C 02 MSC - Module Standard Coating, PDA.C 02 MST - Module Standard
The emtec PDA.C02 Penetration Dynamics Analyzer and the Module HVL (high viscous liquids) helps to predict the gluability of paper and board by measuring the converting-relevant parameters surface sizing (surface hydrophobia) and surface porosity. In comparison to the Standard module, the module HVL has especially been designed for tests with very high viscous liquids, such as glue.
  • 360 Grad Bild (HTML Code): <a class="Magic360" data-options="columns: 74; rows: 1;"><img src="images/stories/produkte/MSC/360-webp/01.webp" /></a>
  • Untersuchung von:
    • Eigenschaft: paper
    • Eigenschaft: board
  • Vorteile:
    • Vorteil: measurement of the converting-relevant parameters surface sizing/surface hydrophobia and surface porosity
    • Vorteil: measured parameters help to optimize the converting process and the product quality, for example by adapting the converting process to the quality of the incoming paper or board
    • Vorteil: modular system (e.g., Module HVL for tests with high viscous liquids or the Module Standard for tests with low viscous liquids)
    • Vorteil: reliable and accurate test results, which help to solve issues in the converting process and with the product quality, where standard test devices are no help
    • Vorteil: Module Standard Coating allows measurements with coating color
  • Produktbeschreibung:

    The PDA.C 02 - Module MSC Standard Coating helps to detect changes in base papers, coating colors, and coated papers, which are not detected by standard test devices, but which can lead issues with the coating-ability during the converting process.

    The contact between coating color and base coating paper happens under high shear and pressure pulse, leading to a good simulation of the coating machine applicator.

    Pilot coater and machine trials indicate the effects of coating color and base paper variations. The PDA.C 02 provides a tool to explore the causes.

  • Anwender: Chemical suppliers, Paper machine builders, Paper producers , Paper converters, Board producers , Board converters, Corrugated board producers , Universities & Institutes
  • Anwendungsgebiete: Process optimization, Product optimization, Benchmarking, R&D, Incoming control, Quality assurance, Complaint management, Troubleshooting
  • Ergebnisse:
    • Wert:

      Max value

      , Beschreibung:

      surface sizing/hydrophobia

    • Wert:

      t95 value

      , Beschreibung:

      surface porosity

  • technische Daten:
    • Titel: device dimensions, Wert: basic device 42 x 16 x 32 cm (H x W x D) , Beschreibung: Motor Control Unit 11 x 16 x 24 cm (H x W x D)
    • Titel: weight, Wert: approx. 16 kg
    • Titel: sample dimension, Wert: 75 x 50 mm
    • Titel: measuring frequencies, Wert: 1 MHz, 2 MHz selectable
    • Titel: first measured value, Wert: approx. 10 ms after liquid contact
    • Titel: measurement intervals , Wert: approx. 1 ms
    • Titel: data structure, Wert: ASCII file
    • Titel: supply voltage, Wert: 115-230 VAC, 50-60 Hz
  • Downloads:
    • Beschriftung : Leaflet (English), Link: images/stories/infomaterial/04_PDA.C02_alle_Module/03_PDA_MST_C/01_Leaflet/emtec_PDA.C02_MSC_CMA_leaflet_en.pdf
  • Applikationsbeispiele inaktiv: Ja
  • Zubehör inaktiv: Nein
  • Zubehör: OSB - Sample Preparation Device, SPM - Sample Preparation Machine, TCU - Temperature Control Unit
  • verwandte Produkte: EST 12 - Surface and Sizing Tester, PDA.C 02 HVL - Module High Viscous Liquids, PDA.C 02 MST - Module Standard
With the emtec PDA.C02 Penetration Dynamics Analyzer and the Module Standard Coating (MSC), which has especially been designed for the use of coating color as test liquid, the interaction between coating color and base paper, the surface sizing and surface porosity as well as the coating quality can be determined.
  • 360 Grad Bild (HTML Code): <a class="Magic360" data-options="columns: 73; rows: 1;"><img src="images/stories/produkte/MST/360-webp/01.webp" /></a>
  • Untersuchung von:
    • Eigenschaft: paper
    • Eigenschaft: board
  • Vorteile:
    • Vorteil: measurement of the converting-relevant parameters surface sizing/surface hydrophobia and surface porosity
    • Vorteil: easy to handle
    • Vorteil: measured parameters help to optimize the converting process and the product quality, for example by adapting the converting process to the quality of the incoming paper or board
    • Vorteil: modular system (e.g., Module HVL for tests with high viscous liquids or the Module Standard Coating for tests with coating color)
    • Vorteil: reliable and accurate test results, which help to solve issues in the converting process and with the product quality, where standard test devices are no help
  • Produktbeschreibung:

    To make sure that the necessary product quality can be reached, specifications are agreed between paper maker and converter. These specifications are bases on standard test devices, such as Cobb or Gurley. But often it happens that although the quality of the base paper or board is within the agreed specifications, issues with the gluability, printability or coating-ability occur during the converting.

    Since gluability, printability and coating-ability mainly depend on surface sizing and surface porosity, information about these two parameters are very important. But the standard test devices are not able to measure them. In comparison to this, the emtec PDA is able to measure these two very important surface parameters within the time that is relevant for the converting process and by this helps to ensure a well-running converting process and the right product quality.

  • Anwender: Chemical suppliers, Paper producers , Paper converters, Board producers , Board converters, Corrugated board producers , Universities & Institutes
  • Anwendungsgebiete: Process optimization, Product optimization, Benchmarking, R&D, Incoming control, Quality assurance, Complaint management, Troubleshooting
  • Ergebnisse:
    • Wert:

      t95 value

      , Beschreibung:

      surface porosity

    • Wert:

      MAX value

      , Beschreibung:

      surface sizing/hydrophobia

  • technische Daten:
    • Titel: device dimensions, Wert: basic device 42 x 16 x 32 cm (H x W x D), Beschreibung: Motor Control Unit 11 x 16 x 24 cm (H x W x D)
    • Titel: weight, Wert: approx. 16 kg
    • Titel: sample dimension, Wert: 75 x 50 mm
    • Titel: measuring frequencies, Wert: 1 MHz, 2 MHz selectable
    • Titel: first measured value, Wert: approx. 10 ms after liquid contact
    • Titel: measurement intervals, Wert: approx. 1 ms
    • Titel: data structure, Wert: ASCII file
    • Titel: supply voltage, Wert: 115-230 VAC, 50-60 Hz
  • Downloads:
    • Beschriftung : Leaflet (English), Link: images/stories/infomaterial/04_PDA.C02_alle_Module/01_PDA_MST/01_Leaflet/emtec_PDA.C02_MST_leaflet_en.pdf
    • Beschriftung : Leaflet (French), Link: images/stories/infomaterial/04_PDA.C02_alle_Module/01_PDA_MST/01_Leaflet/emtec_PDA.C02_MST_leaflet_fr.pdf
    • Beschriftung : Leaflet (Spanish), Link: images/stories/infomaterial/04_PDA.C02_alle_Module/01_PDA_MST/01_Leaflet/emtec_PDA.C02_MST_leaflet_es.pdf
    • Beschriftung : Leaflet (Italian), Link: images/stories/infomaterial/04_PDA.C02_alle_Module/01_PDA_MST/01_Leaflet/emtec_PDA.C02_MST_leaflet_it.pdf
    • Beschriftung : Leaflet (Turkish), Link: images/stories/infomaterial/04_PDA.C02_alle_Module/01_PDA_MST/01_Leaflet/emtec_PDA.C02_MST_leaflet_tr.pdf
    • Beschriftung : Leaflet (Swedish), Link: images/stories/infomaterial/04_PDA.C02_alle_Module/01_PDA_MST/01_Leaflet/emtec_PDA.C02_MST_leaflet_se.pdf
    • Beschriftung : Leaflet (Japanese), Link: images/stories/infomaterial/04_PDA.C02_alle_Module/01_PDA_MST/01_Leaflet/emtec_PDA.C02_MST_leaflet_jp.pdf
    • Beschriftung : Leaflet (Chinese), Link: images/stories/infomaterial/04_PDA.C02_alle_Module/01_PDA_MST/01_Leaflet/emtec_PDA.C02_MST_leaflet_zh.pdf
    • Beschriftung : Leaflet (Russia), Link: images/stories/infomaterial/04_PDA.C02_alle_Module/01_PDA_MST/01_Leaflet/emtec_PDA.C02_MST_leaflet_ru.pdf
    • Beschriftung : Leaflet (Polish), Link: images/stories/infomaterial/04_PDA.C02_alle_Module/01_PDA_MST/01_Leaflet/emtec_PDA.C02_MST_leaflet_pl.pdf
    • Beschriftung : Booklet (English), Link: images/stories/infomaterial/04_PDA.C02_alle_Module/01_PDA_MST/02_Booklet/01_EN/emtec_PDA_Penetration_Dynamics_Analyzer_MST_booklet_en.pdf
  • Applikationsbeispiele inaktiv: Nein
  • Applikationsbeispiele: The characterization of the surface pore structure helps to solve issues with the gluability
  • Success Stories & Wissenschaftliche Studien:
    • Beschriftung: Predicting the Behavior of Paper and Board Surfaces in Gluing, Printing and Coating Processes, Link: https://www.jstage.jst.go.jp/article/jtappij/74/5/74_74.530/_pdf/-char/en
  • Zubehör inaktiv: Nein
  • Zubehör: OSB - Sample Preparation Device, SPM - Sample Preparation Machine, TCU - Temperature Control Unit
  • verwandte Produkte: EST 12 - Surface and Sizing Tester, PDA.C 02 HVL - Module High Viscous Liquids, PDA.C 02 MSC - Module Standard Coating
The emtec PDA.C02 Penetration Dynamics Analyzer (plus Module Standard, MST) helps to predict the gluability, printability and coating-ability of paper and board by measuring the converting-relevant parameters surface sizing (surface hydrophobia) and surface pore structure.
From April 25-27, 2023, at one of the most prominent conventions for the pulp, paper, tissue, and board industries in Europe, the IMPS International Munich Paper Symposium, testing device manufacturer emtec Electronic GmbH will present its innovative technology designed to optimize process runnability and product quality. Operating under the theme “Progress in board and paper technology,” the 31st annual IMPS will once again bring together industry professionals for three days of idea exchange, expert lectures, exhibitions, and professional networking.  During the Symposium, Leipzig-based...
emtec Electronic GmbH, a leading manufacturer for specialized measuring and testing devices, is set to showcase innovative solutions at the upcoming ATIP/COPACEL Congress from November 23-24 in Paris, France, addressing prevalent challenges in the pulp and paper industry. As an exhibitor at the ATIP Congress, emtec Electronic will spotlight its newest products designed to tackle industry-wide issues such as resource waste in the wet-end and the precise determination of advanced haptic parameters. Among the showcased solutions will be the redesigned TSA Tactile Sensation Analyzer, which will...
The German manufacturer of specialized testing and measuring instruments, emtec Electronic, is pleased to introduce its redesigned TSA Tactile Sensation Analyzer at the upcoming 66th Japan TAPPI Annual Meeting from October 4-6, 2023, in Tokyo, Japan. The 66th Japan TAPPI Annual Meeting is a prominent event in the pulp and paper industry, gathering experts, researchers, and industry leaders to showcase the latest advancements in the field of tissue paper and paper products. This year, Ms. Kazumi Tanikawa from Sanyo Trading will give a special presentation on the TSA's unique measuring capabilities. Its...
  • 360 Grad Bild (HTML Code): <a class="Magic360" data-options="columns: 85; rows: 1;reverse-column: true;"><img src="images/stories/produkte/Sample-Punch/360-webp/01.webp" /></a>
  • Vorteile:
    • Vorteil: no pressure is built up by the knife and the haptic on the material will not be destroyed
    • Vorteil: replaceble knife
    • Vorteil: robust and easy handeling
    • Vorteil: adjustable heights of the knife enable a better handling
  • Produktbeschreibung:

    The sample punch is mainly used as an accessory of the TSA Tissue Softness Analyzer / Tactile Sensation Analyzer. Since other tests in the industry work with similar sample sizes, the punch can of course also be used for other tests independent from the TSA.

  • Anwender: Chemical suppliers, Tissue producers, Tissue converters, Pulp producers, Nonwovens producers, Nonwovens converters, Textile producers , Textile converters, Universities & Institutes, Retailers
  • Anwendungsgebiete: R&D, Incoming control, Quality assurance
  • Ergebnisse:
    • Wert:

      Samplesize

      , Beschreibung:

      ∅112,8mm / 100cm²

  • technische Daten:
    • Titel: device dimensions, Wert: 39.85 x 25 x 40 cm (H x W x D)
    • Titel: weight, Wert: approx. 29.8 kg
  • Downloads:
    • Beschriftung : Leaflet-Tissue (English), Link: images/stories/infomaterial/01_TSA/05_Sample_Punch/emtec_TSA_Sample_Punch_leaflet_tissue_en.pdf
    • Beschriftung : Leaflet-Nonwoven-Textil (English), Link: images/stories/infomaterial/01_TSA/05_Sample_Punch/emtec_TSA_Sample_Punch_leaflet_nw_textile_en.pdf
  • Applikationsbeispiele inaktiv: Ja
  • Zubehör inaktiv: Ja
  • verwandte Produkte: BBT - Ball Burst Tester, TSA - Tactile Sensation Analyzer, TSA - Tissue Softness Analyzer
100cm² (diameter = 112.8mm) is the optimal sample size for many different tests in the pulp and paper, nonwoven and textile industry. With the emtec sample punch, several plies of the three different materials can be cut.
  • 360 Grad Bild (HTML Code): <a class="Magic360" data-options="columns: 73; rows: 1;"><img src="images/stories/produkte/SPM/360-webp/01.webp" /></a>
  • Vorteile:
    • Vorteil: efficiently
    • Vorteil: user independent
    • Vorteil: saves muscularity
    • Vorteil: uniform
    • Vorteil: time saving compared to manual preparation: up to 50% !
  • Produktbeschreibung:
    • Avoidance of measurement errors by varying handling:
      constant compressing force
    • Thereby measuring results substantially more reproducible
    • Adapter for various sample holders available
  • Anwender: Chemical suppliers, Paper machine builders, Paper producers , Paper converters, Board producers , Board converters, Corrugated board producers , Universities & Institutes
  • Anwendungsgebiete: Process optimization, R&D, Incoming control, Quality assurance, Complaint management, Troubleshooting
  • technische Daten:
    • Titel: device dimensions, Wert: 40 x 25 x 40.5 cm (H x W x D)
    • Titel: weight, Wert: 33.5 kg
  • Applikationsbeispiele inaktiv: Ja
  • Zubehör inaktiv: Ja
  • verwandte Produkte: EST 12 - Surface and Sizing Tester, PDA.C 02 MST - Module Standard
Sample Preparation Machine to the Modular Measuring System PDA.C 02 and to the Surface & Sizing Tester EST und EST12.
emtec Electronic GmbH, a leading manufacturer for specialized measuring and testing devices, is set to showcase innovative solutions at the Tissue World Miami from January 31 to February 02 in Miami Beach, Florida, addressing prevalent challenges in the pulp and paper industry. As an exhibitor at the Tissue World Miami, emtec Electronic will spotlight its newest products designed to tackle industry-wide issues such as resource waste in the wet-end and the precise determination of advanced haptic parameters. Among the showcased solutions will be the redesigned TSA Tactile Sensation Analyzer,...
  • 360 Grad Bild (HTML Code): <a class="Magic360" data-options="columns: 73; rows: 1;"><img src="images/stories/produkte/TSA/360-webp/01.webp" /></a>
  • Untersuchung von:
    • Eigenschaft: tissue
  • Vorteile:
    • Vorteil: objective measurement of the softness, roughness and stiffness (results for each parameter individually available)
    • Vorteil: measurement of the compressibility, crumplability and burst resistance with special modules possible
    • Vorteil: calculation of a so-called hand feel (HF) value by different mathematical models
    • Vorteil: very good correlation with the human tactile sensation
    • Vorteil: accurate and reliable
    • Vorteil: easy handling
    • Vorteil: transportable
  • Produktbeschreibung:

    Softness, roughness and stiffness are the three basic haptic parameters, which determine the human hand feel. But, in comparison to the human hand, the device provides these three parameters as individual values. By the help of special algorithms, these three single parameters can be combined to so-called hand feel (HF) values. With the right mathematical model, a correlation to the human expectation of up to almost 100 percent is possible.

    The emtec TSA Tissue Softness Analyzer is already subject of a released TAPPI Technical Information Paper (TIP). The critically peer-reviewed technical specification document investigates the specialized measuring instrument that is able to simulate the sensory properties of the human hand when touching tissue paper products. TAPPI TIP 0808-07, titled “Objective Determination of the Haptic Properties of Tissue Products, Technical Information Paper TIP 0808-07 (2021)” covers the theoretical background of haptics, how the TSA device measures the three basic parameters for determining haptic feel, and discusses application possibilities for the paper manufacturing process and quality assurance. For more information on TAPPI Standards, Technical Information Papers, or Useful Methods, visit here

  • Anwender: Chemical suppliers, Paper machine builders, Tissue producers, Tissue converters, Pulp producers, Universities & Institutes, Retailers
  • Anwendungsgebiete: Process optimization, Process control, Production control, Product optimization, Benchmarking, R&D, Incoming control, Quality assurance, Complaint management, Troubleshooting
  • Ergebnisse:
    • Wert:

      TS7

      , Beschreibung:

      Softness

    • Wert:

      TS750

      , Beschreibung:

      Roughness

    • Wert:

      D

      , Beschreibung:

      In-plane stiffness

    • Wert:

      , Beschreibung:

      Elasticity

    • Wert:

      , Beschreibung:

      Hysteresis

    • Wert:

      , Beschreibung:

      Plasticity

  • technische Daten:
    • Titel: device dimensions, Wert: 19 x 44 x 47 cm (W x H x D)
    • Titel: weight , Wert: 19 kg
    • Titel: supply voltage , Wert: 115-230 VAC, 50/60 Hz
    • Titel: sample dimension, Wert: 112,8 mm
  • Downloads:
    • Beschriftung : Leaflet (English), Link: images/stories/infomaterial/01_TSA/01_Tissue/01_Leaflet/emtec_TSA_leaflet_en.pdf
    • Beschriftung : Booklet (English), Link: images/stories/infomaterial/01_TSA/01_Tissue/02_Booklet/emtec_TSA_Tissue_Softness_Analyzer_booklet_en.pdf
    • Beschriftung : Leaflet (French), Link: images/stories/infomaterial/01_TSA/01_Tissue/01_Leaflet/emtec_TSA_leaflet_fr.pdf
    • Beschriftung : Leaflet (Spanish), Link: images/stories/infomaterial/01_TSA/01_Tissue/01_Leaflet/emtec_TSA_leaflet_es.pdf
    • Beschriftung : Leaflet (Italian), Link: images/stories/infomaterial/01_TSA/01_Tissue/01_Leaflet/emtec_TSA_leaflet_it.pdf
    • Beschriftung : Leaflet (Turkish), Link: images/stories/infomaterial/01_TSA/01_Tissue/01_Leaflet/emtec_TSA_leaflet_tr.pdf
    • Beschriftung : Leaflet (Swedish), Link: images/stories/infomaterial/01_TSA/01_Tissue/01_Leaflet/emtec_TSA_leaflet_se.pdf
    • Beschriftung : Leaflet (Japenese), Link: images/stories/infomaterial/01_TSA/01_Tissue/01_Leaflet/emtec_TSA_leaflet_jp.pdf
    • Beschriftung : Leaflet (Chinese), Link: images/stories/infomaterial/01_TSA/01_Tissue/01_Leaflet/emtec_TSA_leaflet_zh.pdf
    • Beschriftung : Leaflet (Russia), Link: images/stories/infomaterial/01_TSA/01_Tissue/01_Leaflet/emtec_TSA_leaflet_ru.pdf
    • Beschriftung : Leaflet (Polish), Link: images/stories/infomaterial/01_TSA/01_Tissue/01_Leaflet/emtec_TSA_leaflet_pl.pdf
  • Applikationsbeispiele inaktiv: Nein
  • Applikationsbeispiele: Optimization of the blade life time, Optimizing the amount of lotion, which is often added in the tissue converting
  • Videos:
    • Vorschaubild: , Videodatei: images/stories/infomaterial/01_TSA\02_Nonwoven\06_Produktvideos\10_Internet/TSA Produktvideo vertont - 1080p - YT
  • Success Stories & Wissenschaftliche Studien:
    • Beschriftung: Influence of Tissue Paper Converting Conditions on Finished Product Softness, Link: https://ojs.cnr.ncsu.edu/index.php/BioRes/article/view/BioRes_15_3_7178_de_Oliveira_Mendes_Tissue_Paper_Conditions
    • Beschriftung: A New Method to Evaluate the Hand-Feel Potential of Furnishes for Tissue Paper Products, Link: https://bioresources.cnr.ncsu.edu/wp-content/uploads/2020/12/BioRes_16_1_684_17796_Prinz_ZBM_New_Method_Eval_Hand_Feel_Potential_Tissue_Paper-.pdf
    • Beschriftung: The softness of hygiene tissue, Link: https://bioresources.cnr.ncsu.edu/resources/review-the-softness-of-hygiene-tissue/
  • Zubehör inaktiv: Nein
  • Zubehör: Sample Punch
  • verwandte Produkte: BBT - Ball Burst Tester, TSA - Tactile Sensation Analyzer
Traditionally, the hand feel of a tissue product  has  been tested by the human hand, in the best case by human hand panels. The human feeling depends on several factors, e.g. personal and market specific preferences, the daily mood and the culture. A further disadvantage is the inability to feel the three basic haptic parameters, which determine the overall haptic impression of a material that is touched by the hand.  The emtec TSA Tissue Softness Analyzer objectively measures the micro-surface variations (feeling of softness), the macro-surface variations (feeling of roughness) and the in-plane...
