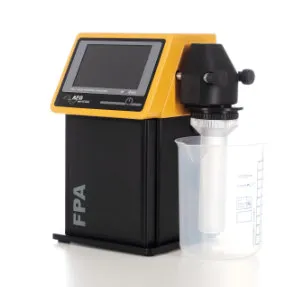

FPA touch! - Fiber Potential Analyzer

The FPA touch! Fiber Potential Analyzer combines proven methods of Zeta Potential measurement with the known great simplicity of handling and functioning of the previous FPA versions, but enhanced with new features and an immense reduction in weight and size.


Product description

The new FPA touch! Fiber Potential Analyzer combines proven methods of Zeta Potential measurement with the known great simplicity of handling and functioning of the previous FPA versions, but enhanced with new features and an immense reduction in weight and size.

Surface charges of fibers, fillers, particles or colloidally dissolved substances in stock suspension are defined by the Zeta Potential on their surfaces. The charge of the stock suspension can be split into the colloidal and particle charge, measured with the CAS touch! Charge Analyzing System, while the fiber and filler charge is measured with the FPA touch! Fiber Potential Analyzer. All both charge levels together define the overall Zeta Potential of fiber suspensions.

The knowledge of the fiber charges in the pulp is the key for optimized dosage of chemical aids, which should be adsorbed onto the surface of the fiber. The mostly negatively (anionic) charged fiber is adsorbing the positive (cationic) charged additives in the papermaking process. The optimized dosage of such aids always depends on the Zeta Potential within the pulp.

The FPA touch! is designed to determine the Zeta Potential of fibers according to the HelmholtzSmoluchowski equation by simultaneously measuring conductivity, pressure and the streaming current potential. The measuring principle is based on the streaming current potential measuring method in a fiber plug. That fiber plug is automatically building up on a screen electrode in the measuring cell of the FPA by a vacuum. By periodically changing the vacuum during the measurement the charge clouds absorbed on the fibers are moving with the liquid stream and generating the streaming current potential measured by the screen and ring electrode.

The knowledge of the fiber charge enables a correct and effective dosage of the charged chemical additives. The fiber adsorption of cationic starch, wet strength resin, and many other chemical aids can be easily measured with original samples on-site to optimize the dosage of chemicals in the wet end of the paper manufacturing process.


Users

Chemical suppliers
Paper machine builders
Paper producers
Board producers
Corrugated board producers
Tissue producers
Pulp producers
Universities & Institutes

Application areas

Process optimization
Product optimization
R&D
Incoming control
Quality assurance
Complaint management
Troubleshooting
Marketing & Sales

Results

Zeta Potential (mV)

 Conductivity (mS/cm)

Streaming Potential (mV)


Technical data

device dimensions

17 x 28.5 x 17 cm (H x W x D)

weight

approx. 5.9 kg
with transport case approx. 12 kg

sample volume

400-800 ml

power supply

100-240 VAC 50/60 Hz 40W

available electrode screens

30-315 micrometer
